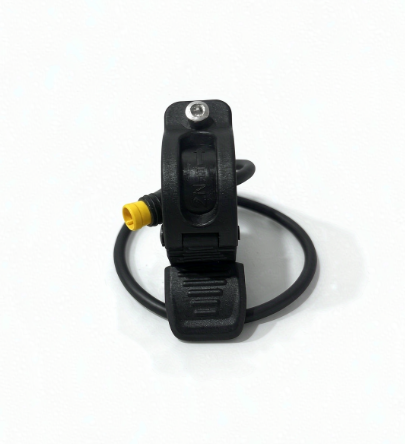

Arwibon Q30 Scooter Throttle—2026 Latest Model

Replacement thumb throttle for the Arwibon Q30 electric scooter. This is the latest 2026 throttle version and installs directly on the handlebar.

The throttle connects to the scooter wiring harness through its waterproof plug and controls acceleration through thumb input.

Product Features

• Compatible with corresponding Arwibon Q30 versions
• 2026 latest-model throttle
• Thumb-operated accelerator
• Handlebar-mounted design
• Waterproof electrical connector
• Integrated cable

Compatibility Notice

Please compare the connector type, pin configuration, cable length, mounting position, and appearance with your original throttle before ordering.

Different Q30 production versions may use different throttle connectors. Do not purchase only according to the scooter model name.

Tools Required

• Allen key
• Scissors or utility knife
• Electrical tape
• Nylon cable ties

Throttle Removal

1. Open the Wiring Sleeve

Remove the spiral protective sleeve or electrical tape under the handlebar until the throttle connector is visible.

Be careful not to cut the wire insulation.

2. Disconnect the Throttle

Trace the cable from the throttle to its connector.

Hold both sides of the plug and pull it apart in a straight line. Press the locking tab first if the connector uses one.

Do not pull directly on the wires.

3. Remove the Old Throttle

Loosen the throttle clamp screw with an Allen key.

Slide the old throttle off the handlebar.

If nearby components block removal, loosen and move them slightly first.

Throttle Installation

1. Compare the New Part

Before installation, compare the new throttle with the original part.

Check the connector, pin arrangement, cable length, clamp size, and cable direction.

Do not continue if the electrical connector is different.

2. Install the New Throttle

Slide the replacement throttle onto the handlebar.

Adjust the angle so your thumb can press the throttle comfortably without interfering with the brake lever or grip.

Tighten the clamp screw after the position is correct.

3. Connect the Wiring

Route the throttle cable alongside the original handlebar wiring.

Align the waterproof connector correctly and push it straight into the matching plug.

Make sure the connection is fully seated.

Use cable ties to hold loose wiring in place, but do not overtighten them.

Function Test

Raise the drive wheel off the ground before testing.

Turn the scooter on and confirm that no new error code appears.

Press the throttle slowly and check that the motor responds normally.

Release the throttle and confirm that it returns freely to the original position.

Apply the brake while operating the throttle to confirm that motor power cuts correctly.

Do not ride the scooter if the throttle sticks, responds intermittently, or does not return smoothly.

Final Check

Turn the handlebar fully left and right.

Make sure the throttle cable does not become tight, twisted, or pulled at the connector.

Reinstall the spiral protective sleeve or electrical tape around the wiring after testing.
