Arwibon Q30 Scooter Tire

Arwibon Q30 Scooter Tire

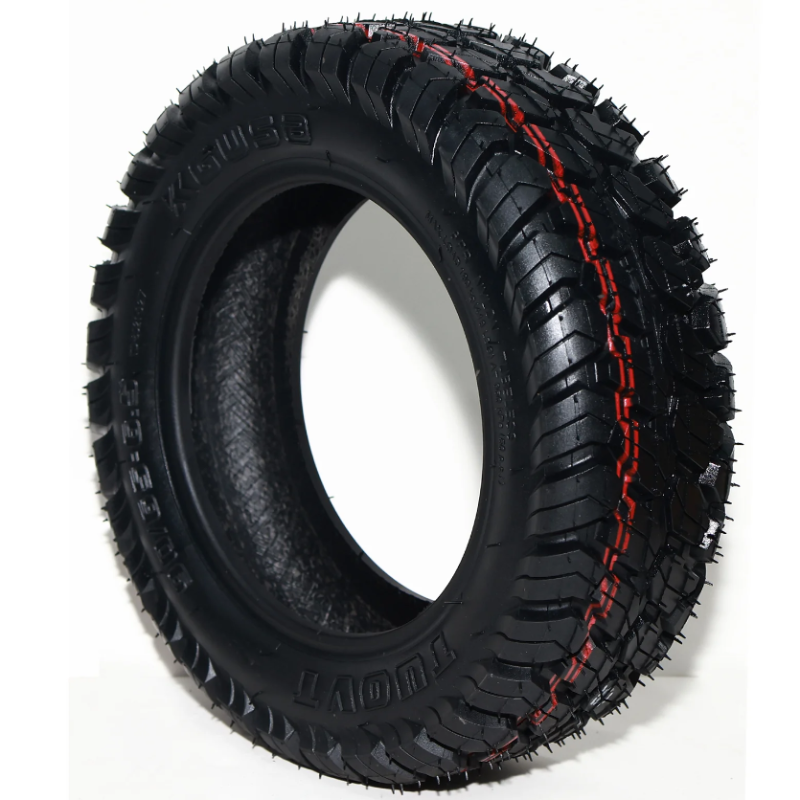

Replacement Tire for Arwibon Q30 Electric Scooter

The Arwibon Q30 Tire is designed as a replacement tire for worn or damaged original tires. It provides reliable grip, durability, and riding stability for daily use on different road conditions.

The tire uses a durable rubber compound with a tread pattern designed for better traction and control. It helps improve handling on dry roads, wet surfaces, and uneven paths.

Product Details:

• Compatible Model: Arwibon Q30 Electric Scooter
• Product Type: Replacement Tire
• Application: Rear wheel replacement
• Tire Only (Does not include motor or wheel assembly)

Arwibon Q30 Rear Tire Replacement Guide

(Rear Tire Replacement Complete Guide)

⚠️ Safety Notice

Before replacement:

• Turn off the scooter completely.
• Do not pull or bend the rear motor cable during wheel removal.
• Use proper tire tools to avoid damaging the motor rim or inner tube.

🔧 Tools Required

• Stable stand or stool (to lift the rear wheel)
• Allen wrench set
• Large wrench or socket wrench
• Tire levers
• Air pump
• Valve core tool
• New zip ties
• Threadlocker (recommended)
• Soap water or heat gun (recommended for tire installation)

How to Remove the Arwibon Q30 Scooter Tire

1. Lift the Scooter and Release Motor Cable

1. Place the scooter on a stable stand to lift the rear wheel off the ground.
2. Locate the rear motor cable fixed on the frame.
3. Cut the cable ties carefully and release the motor cable.

Do not pull the cable forcefully during the process.

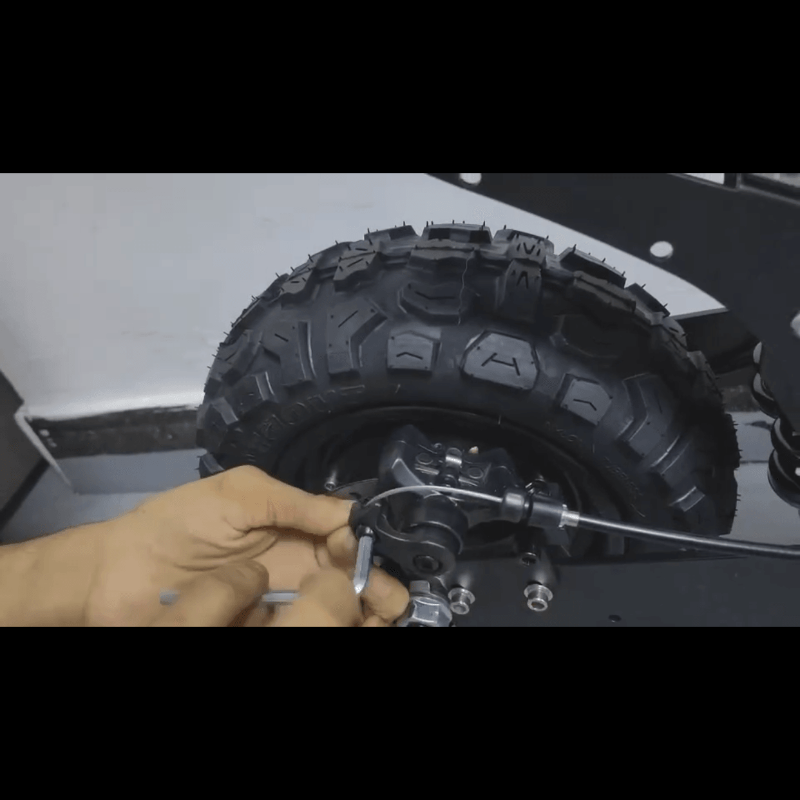

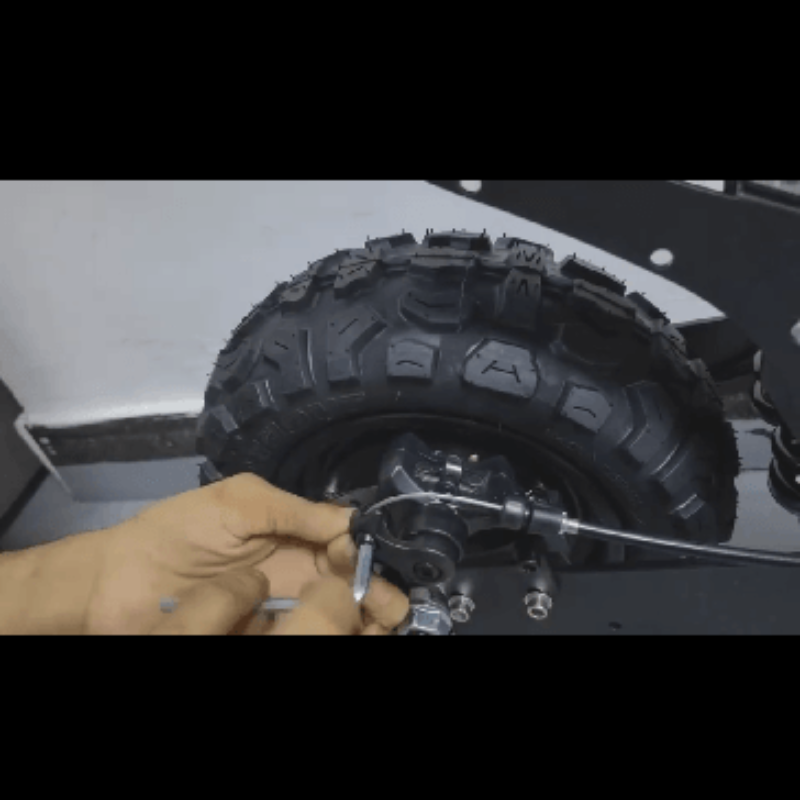

2. Remove Rear Brake Caliper

1. Use an Allen wrench to remove the two screws fixing the rear brake caliper.
2. Move the brake caliper away from the brake disc.
3. Keep the brake cable supported and avoid pulling it.

3. Remove Rear Wheel Assembly

1. Use a large wrench to loosen the axle nuts on both sides of the rear wheel.
2. Remove the nuts and washers.
3. Pull the rear wheel assembly backward from the frame.
4. Carefully guide the motor cable out of the frame opening.

4. Remove Brake Disc and Deflate Tire

1. Completely release the air from the tire.
2. Remove the six screws fixing the brake disc.
3. Take off the brake disc and keep the screws safely.

Removing the brake disc prevents damage during tire replacement.

5. Remove Old Tire

1. Press both sides of the tire bead inward to separate it from the rim.
2. Insert tire levers between the tire and rim.
3. Slowly work around the rim until one side of the tire is removed.
4. Remove the tire completely from the motor rim.

How to Install  the Arwibon Q30 Scooter New Tire

1. Install New Tire

1. Apply a small amount of soap water around the tire edge.
2. Install one side of the tire bead into the rim.
3. Use tire levers to slowly install the remaining side.
4. Make sure the tire bead is seated evenly around the rim.
5. Inflate the tire to the recommended pressure.

2. Install Brake Disc

1. Place the brake disc back onto the motor wheel.
2. Align all six screw holes.
3. Tighten the screws evenly in a diagonal pattern.

3. Install Rear Wheel Assembly

1. Place the rear wheel back into the frame.
2. Route the motor cable through the original frame path.
3. Install washers and axle nuts.
4. Apply threadlocker to the axle thread.
5. Tighten both axle nuts securely.

Make sure the wheel is firmly fixed before riding.

4. Install Brake Caliper and Fix Cable

1. Install the brake caliper back onto the brake disc.
2. Tighten the two caliper screws.
3. Use new zip ties to secure the motor cable to the frame.
4. Make sure the cable cannot touch the tire during rotation.

Final Test

After installation:

• Turn on the scooter.
• Lift the rear wheel and test motor operation.
• Check tire rotation and wheel alignment.
• Test the rear brake function.
• Confirm there is no abnormal noise or rubbing.

After all checks are completed, the scooter is ready for riding.
