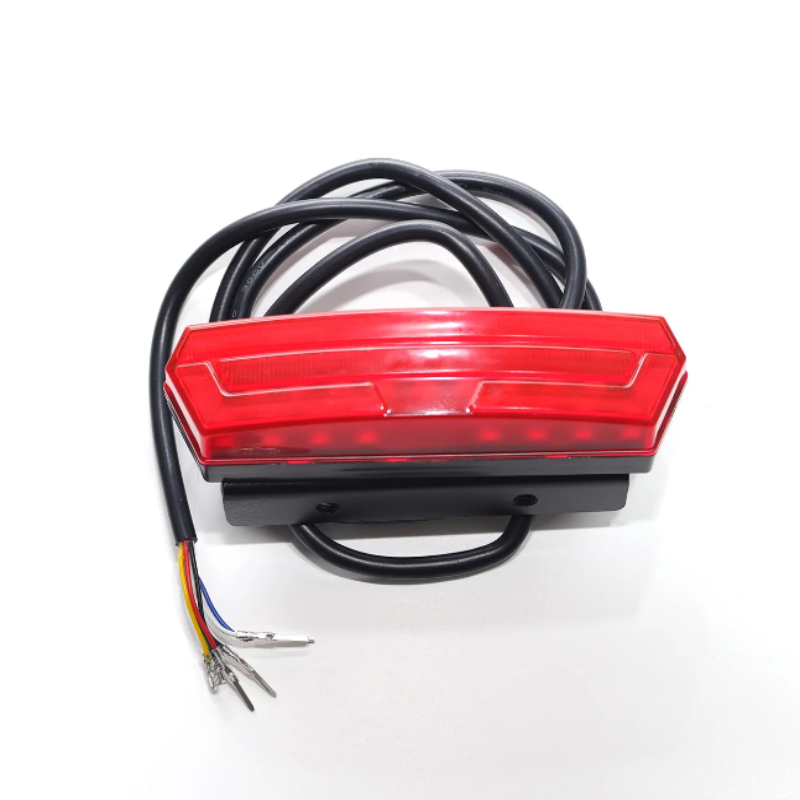

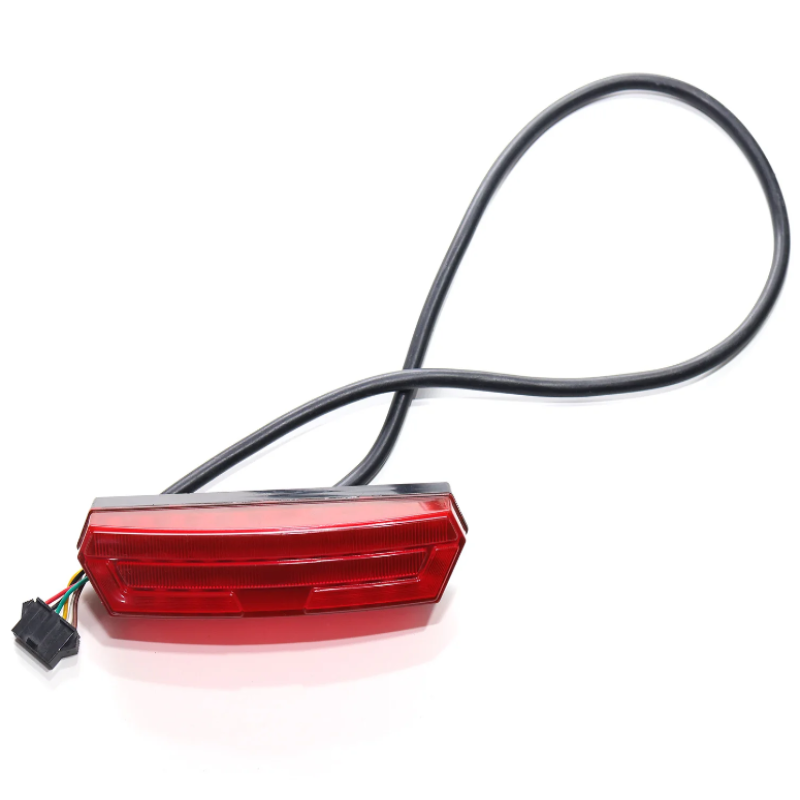

Arwibon Q30 Scooter Tail Light Set

Arwibon Q30 Scooter Tail Light Set

The Arwibon Q30 Scooter Tail Light Set is designed for the Arwibon Q30 electric scooter. It replaces the original rear light assembly and restores rear lighting functions, including tail light, brake light, and signal light functions (depending on scooter configuration).

The LED tail light improves visibility during night riding and low-light conditions.

How to Install the Arwibon Q30 Scooter Tail Light Set

Step 1: Install the Tail Light

Place the tail light assembly onto the rear fender mounting position.

Align the screw holes and tighten the fixing screws to secure the tail light.

Step 2: Route the Tail Light Cable

Guide the tail light wiring along the rear fender.

Pass the cable into the scooter body and connect it inside the battery/controller compartment.

Keep the cable properly arranged to avoid damage during riding.

Step 3: Connect the Wiring

Find the matching connectors inside the scooter.

Connect the tail light wires according to the corresponding plugs and wire colors.

Make sure each connector is fully inserted and securely connected.

Step 4: Test the Tail Light

Turn on the scooter and check the lighting functions:

• Rear light
• Brake light
• Turn signal light (if equipped)

After confirming all functions work correctly, close the compartment.

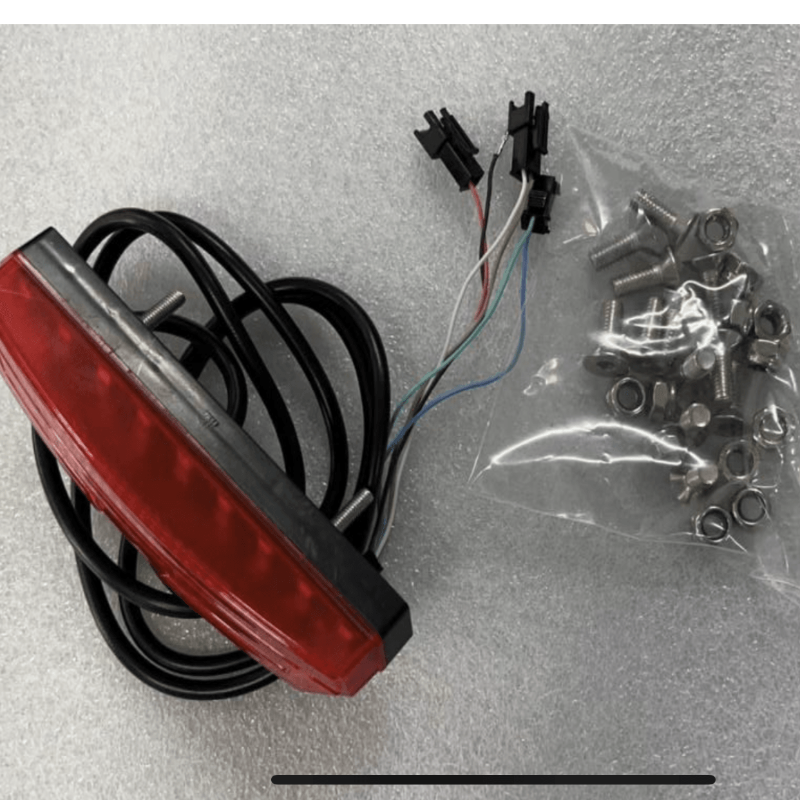

Package Includes

• 1 × Q30 Tail Light Assembly
• Wiring harness
• Mounting screws

Compatibility

Compatible with:

Arwibon Q30 Electric Scooter
