Arwibon Q06Pro Electric Scooter Turn Signal Switch - Electric Scooter

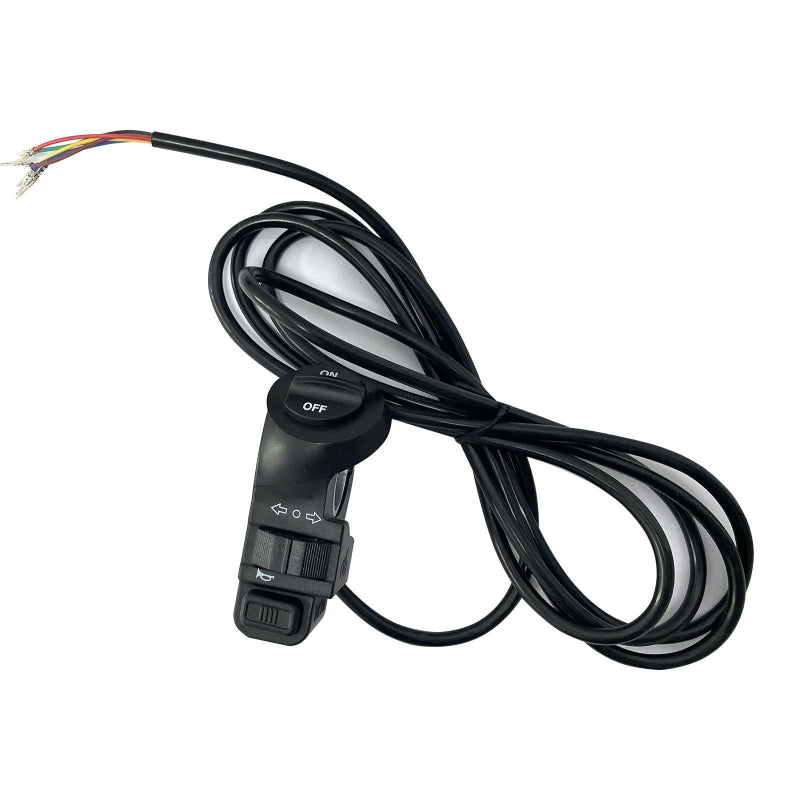

Arwibon Q06Pro Electric Scooter Turn Signal Switch

Arwibon Q06Pro Electric Scooter Turn Signal Switch Turn Signal / Light / Horn Switch Replacement for Arwibon...
Vendor: Arwibon
Availability: In Stock
$35.00
$35.00
Please hurry! Only 1098 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $35.00

Free Shipping

Free Shipping

Free Returns

Learn More.

Built And Shipped Within 5 - 7 Bussiness Days

Arwibon Q06Pro Electric Scooter Turn Signal Switch - Electric Scooter

Arwibon Q06Pro Electric Scooter Turn Signal Switch

$35.00

Arwibon Q06Pro Electric Scooter Turn Signal Switch

$35.00

Arwibon Q06Pro Electric Scooter Turn Signal Switch

Turn Signal / Light / Horn Switch Replacement for Arwibon Q06Pro Electric Scooter

Compatible with Arwibon Q06Pro electric scooter. This switch assembly integrates the turn signal, headlight, and horn controls. It is a replacement part for damaged or malfunctioning handlebar switches.

Product Details

  • Model: Arwibon Q06Pro Electric Scooter
  • Part: Left Handlebar Switch Assembly
  • Function: Turn Signal / Headlight / Horn Control Replacement
  • Package Includes: 1 × Turn Signal Switch Assembly

Arwibon Q06Pro Three-in-One Switch Replacement Guide

(Turn Signal / Light / Horn Switch Replacement Guide)

⚠️ Safety Warning

  • Turn off the scooter completely before starting.
  • Disconnect the battery power before handling any wiring.
  • Q06Pro switch wiring contains multiple cables. Take photos of the original wiring position before removing connectors.
  • Do not pull wires directly. Always hold the connector when disconnecting.

🔧 Tools Required

  • Allen wrench set
  • Scissors or utility knife
  • Small flat screwdriver or pin removal tool
  • Electrical tape

Remove Old Switch

1. Remove Left Handlebar Components

  1. Remove the left rubber grip from the handlebar.
  2. Use an Allen wrench to loosen the brake lever fixing screw.
  3. Move the brake lever away from the switch area.
  4. Remove the fixing screw at the bottom of the old switch.
  5. Slide the old switch assembly off the handlebar.

2. Open the Deck Cover

  1. Remove the screws around the deck cover.
  2. Carefully lift the cover.

Note:
Do not pull the cover suddenly because there may be small wiring connected underneath.

3. Disconnect the Switch Wiring

  1. Follow the switch cable from the handlebar into the scooter body.
  2. Find the switch connectors inside the controller/battery compartment.
  3. Disconnect the related plugs one by one.

Before removing any connector:

  • Take a clear photo.
  • Record the wire color and connector position.

4. Remove the Old Cable

  1. Remove the spiral cable sleeve around the stem wiring.
  2. Cut the electrical tape carefully if the wires are wrapped together.
  3. Pull the old switch cable out from the scooter body.
  4. Remove the old switch completely.

Install New Switch

1. Install New Switch Assembly

  1. Insert the new Q06Pro switch onto the left handlebar.
  2. Adjust the position so the buttons are easy to operate.
  3. Tighten the fixing screw.
  4. Reinstall the brake lever and adjust the angle.
  5. Install the rubber grip back into position.

2. Route the New Cable

  1. Pass the new switch cable through the handlebar area.
  2. Guide the cable down through the stem.
  3. Pull the cable into the deck compartment.
  4. Leave enough cable length near the steering area.

Make sure:

  • The cable is not stretched.
  • The handlebar can turn freely.
  • The cable does not rub against sharp edges.

3. Connect the Wiring

  1. Match the new switch connectors with the original connectors.
  2. Connect each plug firmly.

If the connector requires pin installation:

  1. Check the original wiring photo.
  2. Match each wire color with the correct position.
  3. Insert each terminal into the connector housing.
  4. Make sure the terminal is locked firmly.

Important:
Wrong wire positions may cause the switch to malfunction or damage the electrical system.

4. Secure and Protect Wiring

  1. Arrange the switch cable together with the main stem wiring.
  2. Wrap the wiring with electrical tape.
  3. Reinstall the spiral cable sleeve.
  4. Make sure the wiring is protected and neat.

Final Function Test

Before closing the deck cover, test all functions:

Turn Signal Test

  • Left signal works normally.
  • Right signal works normally.

Headlight Test

  • Press the light button.
  • Confirm the headlight turns on.

Horn Test

  • Press the horn button.
  • Confirm the horn sounds.

After all functions work correctly:

  1. Organize the wiring inside the deck.
  2. Install the deck cover.
  3. Tighten all screws.

Q06Pro turn signal switch replacement completed.
