Arwibon GT08 Scooter Steering Damper and Stabilizer

Original Steering Damper Stabilizer for Arwibon GT08 Electric Scooter

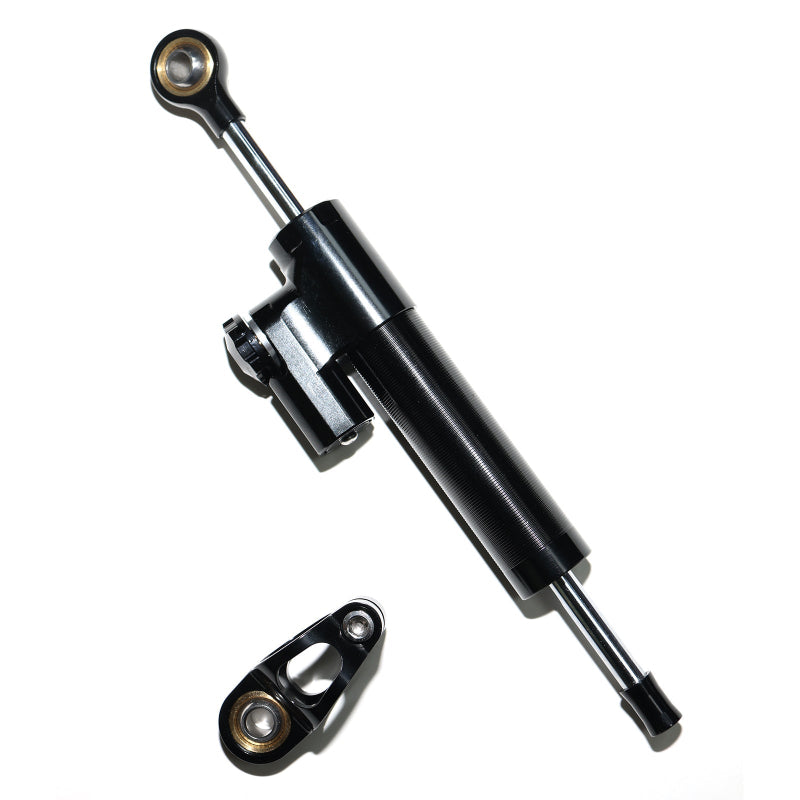

The Arwibon GT08 Steering Damper and Stabilizer is an upgrade accessory designed to improve front-end stability and steering control during high-speed riding.

Installed between the scooter stem and front frame, the steering damper helps reduce sudden handlebar movement caused by uneven roads, acceleration, or off-road riding. It provides a more controlled steering feeling while keeping the original steering flexibility of the GT08 scooter.

The adjustable damping design allows riders to customize the steering resistance according to different riding conditions, making it suitable for daily riding, high-speed riding, and rough terrain.

Product Features

• Compatible with Arwibon GT08 Electric Scooter
• Reduces handlebar shaking during high-speed riding
• Improves front-end stability and steering control
• Adjustable damping force for different riding preferences

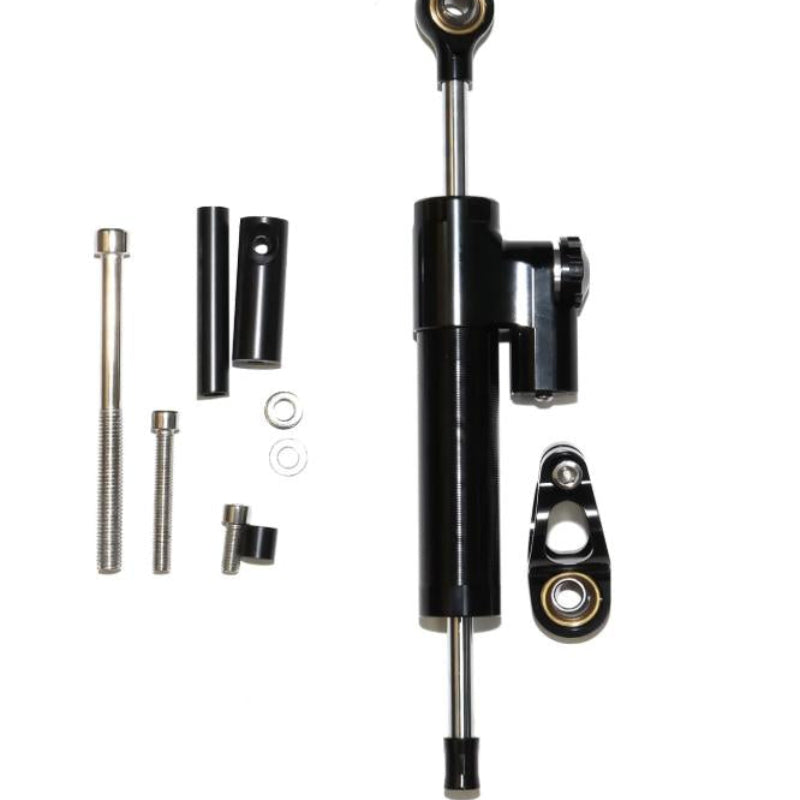

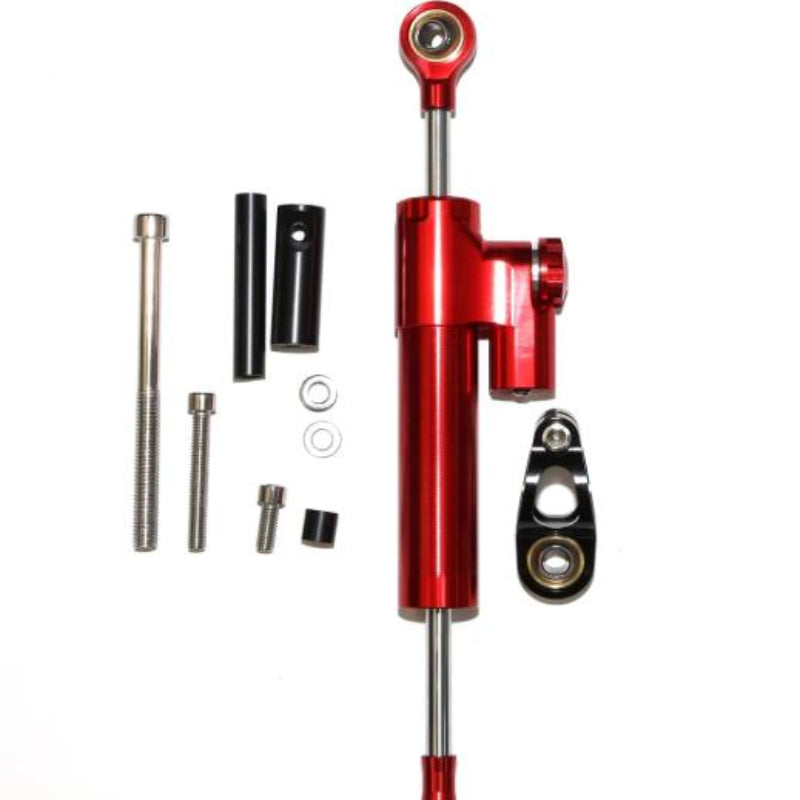

• Includes mounting brackets and installation hardware
• Suitable for street riding and off-road use

GT08 Steering Damper Installation Guide

(Steering Stabilizer Installation Tutorial)

Tools Needed

• Allen wrench set
• Steering damper kit
• Clean cloth

Installation Steps

1. Prepare the Scooter

1. Turn off the GT08 scooter.
2. Place the scooter on a flat surface.
3. Make sure the front wheel and handlebar can move freely during installation.

2. Install the Stem Side Bracket

1. Locate the mounting hole on the scooter stem.
2. Remove the original screw from the mounting position.
3. Take the steering damper with the ball joint end.
4. Install the longer spacer between the damper joint and the stem.
5. Insert the longer screw through the damper joint, spacer, and stem hole.
6. Tighten the screw, but leave a small amount of movement for final adjustment.

3. Install the Frame Side Bracket

1. Find the lower mounting position near the front frame.
2. Install the black fixing bracket onto the steering damper rod.
3. Insert the suitable spacer from the accessory kit.
4. Align the bracket hole with the frame mounting hole.
5. Install the fixing screw and tighten it securely.

4. Adjust the Damper Position

1. Turn the handlebar slowly from left to right.
2. Check that the steering damper moves smoothly.
3. Make sure the damper does not reach its maximum extension or compression when turning fully.
4. Adjust the bracket position if the damper movement is restricted.

5. Final Tightening Check

After confirming the movement:

1. Fully tighten the stem-side fixing screw.
2. Fully tighten the frame-side bracket screw.
3. Tighten the small clamp screw on the damper rod.
4. Check that all parts remain fixed without shaking.

Damping Adjustment

The steering damper usually includes an adjustment knob:

• Turn toward "+": Increase damping force. Steering becomes heavier and more stable, suitable for high-speed riding.
• Turn toward "-": Reduce damping force. Steering becomes lighter and easier for slow-speed maneuvering.

For first use, adjust to the middle setting and fine-tune according to your riding preference.

Final Safety Check

Before riding:

1. Turn the handlebar fully left and right several times.
2. Confirm the damper does not interfere with the folding mechanism or front wheel.
3. Check all screws again after the first short ride.
4. Re-tighten if any looseness appears.

After installation, the GT08 steering damper helps improve stability and gives a more controlled riding experience, especially during high-speed and off-road riding.
