Arwibon GT08 Front Suspension Axle + Spacer

Replacement front suspension axle and spacer for the Arwibon GT08 electric scooter.

This part is installed at the front suspension pivot area and connects the suspension arm to the scooter frame. The axle passes through the mounting point, while the spacer keeps the suspension assembly correctly positioned inside the frame.

Product Includes

• Front suspension axle
• Matching spacer
• Replacement hardware for the corresponding GT08 suspension position

Compatibility Notice

Please compare the axle diameter, axle length, spacer size, mounting position, and original part appearance before ordering.

Different scooter versions may use different suspension hardware. Do not select this part only by scooter model name.

Tools Required

• Allen key set
• Socket or wrench set
• Rubber mallet if needed
• Clean cloth
• Suitable grease for the axle surface

Removal

1. Support the Front End

Place the scooter on a stable repair stand.

Make sure the front wheel and suspension are supported before removing the axle.

Do not allow the suspension arm to drop suddenly after the fastener is removed.

2. Remove the Axle Fastener

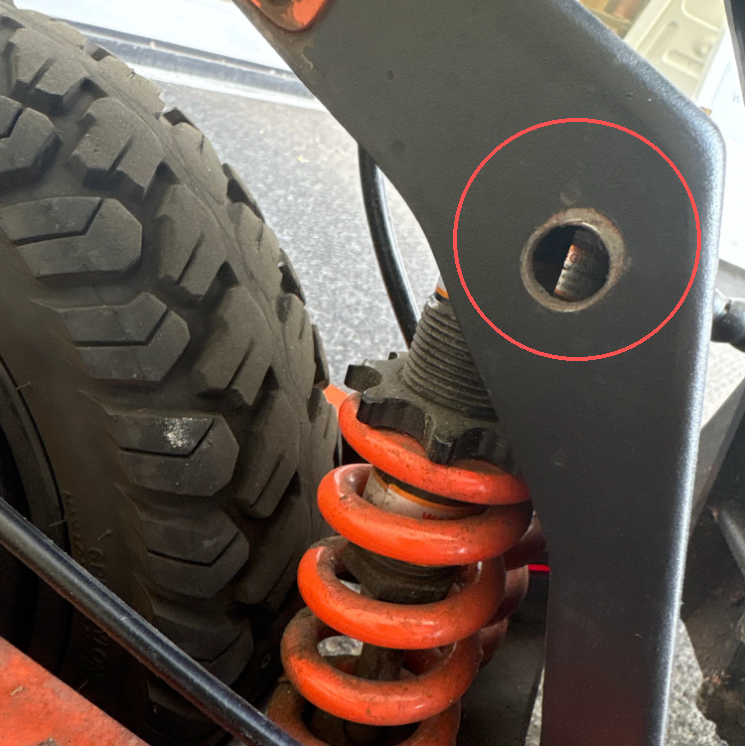

Locate the front suspension pivot axle shown in the product image.

Use the correct Allen key or wrench to loosen the axle bolt or retaining hardware.

Hold the opposite side if the axle rotates during removal.

3. Pull Out the Old Axle

Remove the axle slowly from the suspension mounting point.

Support the suspension arm while pulling the axle out.

Remove the old spacer at the same time and note its original position and direction.

4. Inspect the Mounting Area

Check the suspension mounting holes and surrounding parts for:

• Wear
• Damage
• Deformation
• Dirt or rust
• Damaged bushings

Clean the axle hole before installing the new part.

Installation

1. Position the Spacer

Place the new spacer in the same position as the original part.

Make sure it sits correctly between the suspension arm and frame.

The holes must line up before inserting the axle.

2. Install the New Axle

Apply a light coat of suitable grease to the axle surface if required.

Align the suspension arm, spacer, and frame mounting holes.

Push the new axle through all mounting points.

Do not hammer the axle in forcefully if the holes are not aligned.

3. Tighten the Fastener

Reinstall the retaining bolt, nut, or original locking hardware.

Tighten it securely with the correct tool.

The suspension arm should remain firmly mounted but still move normally through its suspension travel.

Final Check

After installation, check that:

• The axle is fully seated
• The spacer is centered correctly
• No side-to-side looseness is present
• The suspension arm moves freely
• No unusual metal contact or binding occurs
• The front suspension returns normally after compression

Before riding, push down on the front suspension several times and inspect the axle area again.
