Arwibon GT08 Electric Scooter Battery

Arwibon GT08 Electric Scooter Battery

(60V 27Ah Battery Replacement Guide)

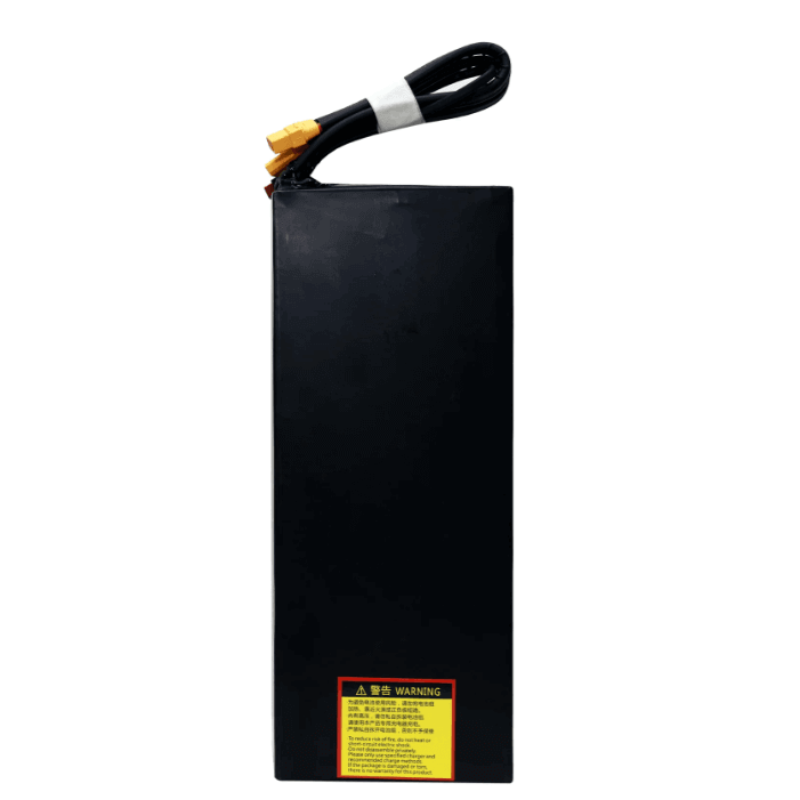

The Arwibon GT08 Electric Scooter Battery is an original replacement battery designed for GT08 electric scooters.

With 60V 27Ah capacity, this battery provides stable power output for the GT08 dual-motor system. It is suitable for replacing an old battery or restoring the scooter’s original riding range and performance.

Product Features

• Compatible with Arwibon GT08 Electric Scooter
• Original 60V 27Ah battery specification
• Designed for GT08 dual-motor system
• Stable power output and reliable performance
• Suitable for battery replacement

Battery Replacement Guide

⚠️ Safety Warning

• Turn off the scooter before replacement.
• Disconnect the main battery connector before removing any wires.
• Avoid short circuits when working with battery cables.

Tools Needed

• Allen wrench set
• Screwdriver
• Insulation tape (if needed)

Remove Old Battery

1. Turn off the scooter and remove the key.
2. Open the deck cover to access the battery compartment.
3. Disconnect the yellow main power connector first.
4. Disconnect the charging cable and other battery connectors.
5. Remove the battery fixing parts.
6. Carefully lift out the old battery.

Install New Battery

1. Place the new GT08 battery into the battery compartment.
2. Fix the battery in the original position.
3. Connect the charging cable and other connectors.
4. Connect the main power connector last.
5. Check that all cables are properly arranged and protected.

Final Check

1. Turn on the scooter.
2. Check that the display powers on normally.
3. Test acceleration and motor operation.
4. Confirm there are no loose connectors before riding.

Battery replacement is complete. Test the scooter at low speed first to ensure normal operation.
