Arwibon Q30 E-Scooter 30AH Battery

Arwibon Q30 E-Scooter 30AH Battery

High Capacity 30Ah Battery for Arwibon Q30 Electric Scooter

The Arwibon Q30 E-Scooter 30AH Battery is a high-capacity replacement battery designed for riders who need longer riding range and fewer charging stops.

Compared with the original 48V 16Ah battery, this 30Ah large-capacity battery provides a much higher energy capacity, making it suitable for long-distance riding, daily commuting, and riders who need extended range.

Battery Capacity Comparison

Range comparison:

• 16Ah original battery: suitable for normal daily riding and short trips.
• 30Ah upgrade battery: provides approximately 87.5% more battery capacity, allowing significantly longer riding distance under the same riding conditions.

*The actual range depends on rider weight, speed, road conditions, temperature, riding mode, and tire pressure.

Product Features

• Compatible with Arwibon Q30 Electric Scooter

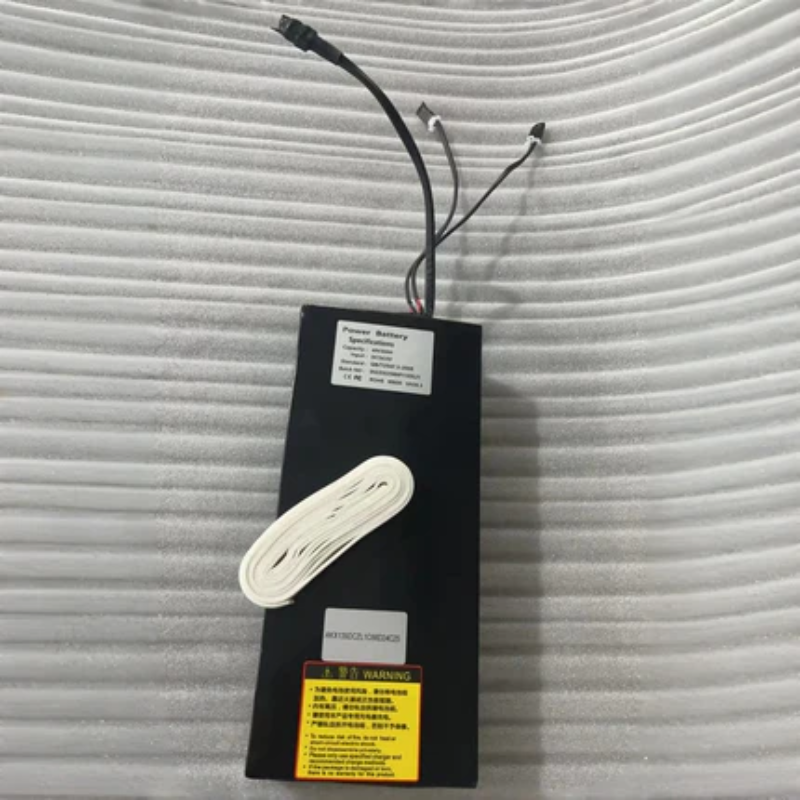

• 48V 30Ah high-capacity battery
• Larger capacity upgrade compared with original 16Ah battery
• Longer riding range for commuting and long-distance trips
• Direct replacement design
• Stable power output for Q30 dual motor system

Battery Specifications

• Voltage: 48V
• Capacity: 30Ah
• Weight: 6.8 kg
• Size: 36.5 × 22.5 × 18 cm
• Battery Type: Lithium battery
• Shipping: Factory direct from China

Q30 Battery Replacement Guide

Safety Notice: The battery is the highest-voltage and most important component of the scooter. Always turn off the scooter before replacement. Never use metal tools to puncture, squeeze, or short-circuit the battery terminals.

Tools Needed

• Allen wrench set
• Screwdriver
• Insulating gloves
• Double-sided tape or EVA foam (recommended for battery fixing)

Battery Removal Steps

1. Turn Off Scooter and Open Deck Cover

1. Turn off the Q30 scooter completely.
2. Remove the key and make sure the display is powered off.
3. Place the scooter on a stable surface.
4. Use an Allen wrench to remove all screws around the deck cover.
5. Carefully lift the deck cover and expose the battery compartment.

2. Disconnect Main Power Connection

1. Locate the battery main power cable inside the compartment.
2. Find the large yellow power connector connected between the battery and controller.
3. Hold both sides of the connector firmly.
4. Pull the connector apart carefully to completely disconnect battery power.

Important:
Always disconnect the main power connector first before removing other cables.

3. Disconnect Battery Auxiliary Wires

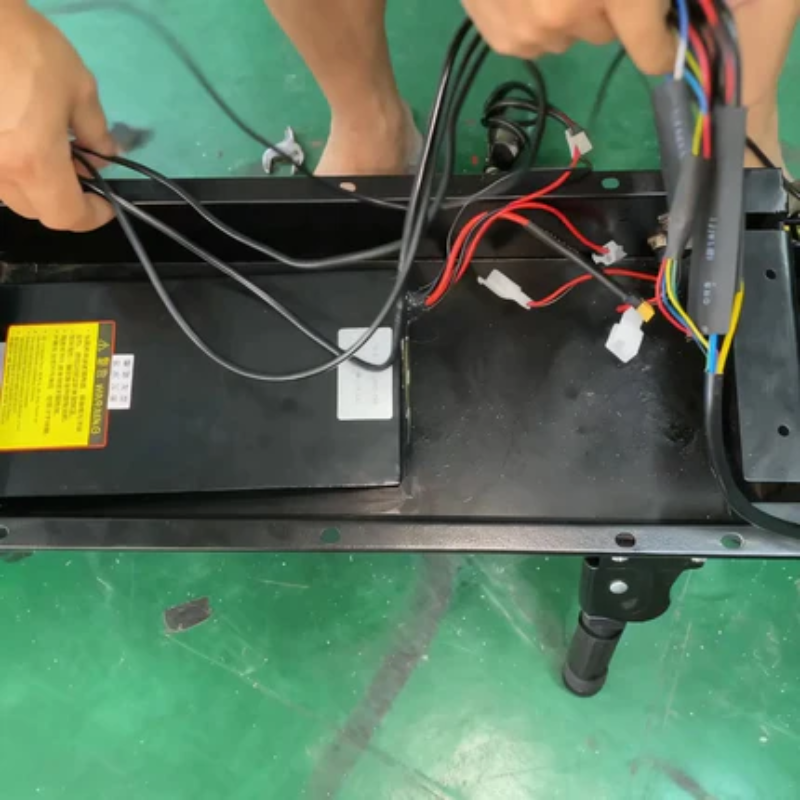

1. Locate the smaller battery cables connected to the scooter wiring system.
2. Disconnect the charging port cable and other small connectors.
3. Hold the plastic connector body when unplugging.
4. Do not pull directly on the wires to avoid damaging the cable connection.

4. Remove Old Battery

1. Check that all battery cables have been disconnected.
2. Remove any battery fixing brackets or straps.
3. Hold both sides of the battery with both hands.
4. Lift the battery vertically from the compartment.
5. Place the old battery in a safe location.

Note:
The Q30 battery is heavy. Support the battery with both hands to avoid dropping or damaging the battery pack.

New Battery Installation Steps

1. Prepare Battery Compartment

1. Clean dust and debris inside the battery compartment.
2. Check that there are no sharp objects inside.
3. Make sure the battery mounting area is flat and dry.

2. Install New 30Ah Battery

1. Place the new 48V 30Ah battery into the original battery position.
2. Check that the battery sits flat inside the compartment.

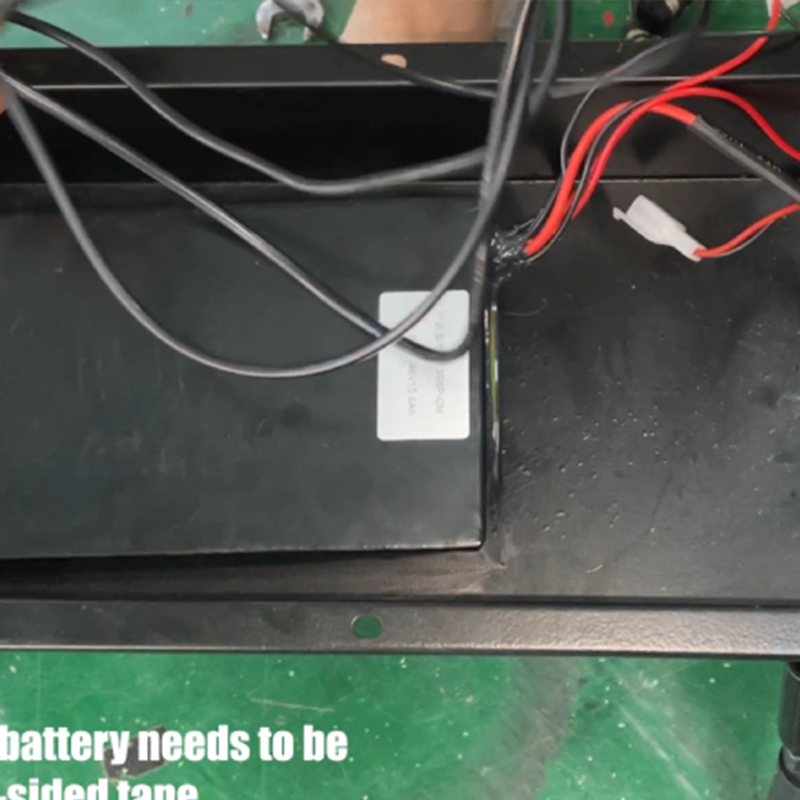

3. Add double-sided tape or EVA foam padding under the battery if needed.
4. Make sure the battery cannot move during riding.

3. Connect Battery Wires

1. Connect the small battery cables first.
2. Make sure each connector matches the original position.
3. Push each connector fully until it is securely connected.
4. Check that no connector is loose.

4. Connect Main Power Cable

1. Locate the large yellow power connector.
2. Align the connector correctly.
3. Push both sides together firmly until fully inserted.
4. Check that the connection is tight and stable.

Final Testing Before Riding

1. Do not install the deck cover immediately.
2. Turn on the scooter and check whether the display works normally.
3. Check the battery level on the screen.
4. Test the throttle at low speed.
5. Confirm the motor works normally.
6. Check that there are no abnormal sounds or loose connections.
7. Turn off the scooter after testing.
8. Arrange all cables neatly inside the battery compartment.
9. Make sure no wires are pressed by the deck cover.
10. Reinstall the deck cover and tighten all screws.

After installation, the Arwibon Q30 30Ah Battery provides a significant capacity upgrade over the original 16Ah battery, giving riders longer range and fewer charging interruptions.
